The body of an acoustic guitar is not a passive amplifier. It is a system of coupled acoustic resonators whose frequencies are deliberately tuned by the luthier before a single string is attached. The technique is called tap tuning, and what it reveals is that guitar building is, at its core, analog filter design performed by ear and chisel.
Three Resonant Regions
Every acoustic guitar body has a predictable hierarchy of resonances that dominate its acoustic output.

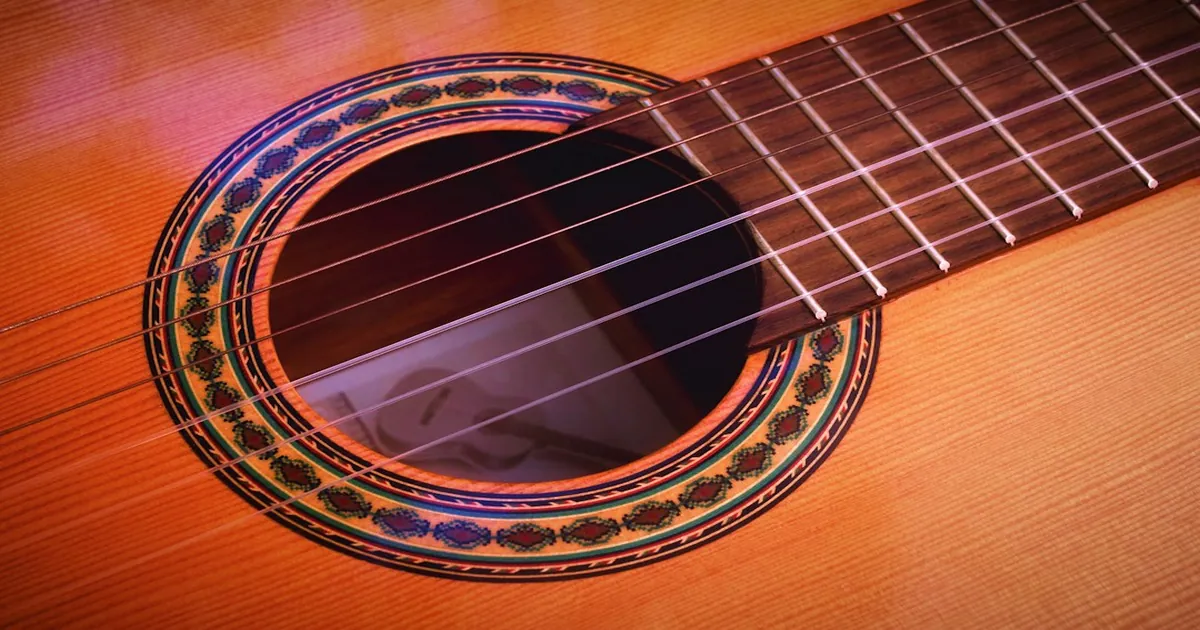

The lowest is the Helmholtz resonance, formed by the air cavity inside the body and the soundhole. The soundhole acts as the neck of a classical Helmholtz resonator: the air column in the hole has inertia, the air volume inside the body provides the restoring spring. The governing relationship is:
f = (c / 2π) × sqrt(S / V × L_eff)
where c is the speed of sound (343 m/s at 20°C), S is the cross-sectional area of the soundhole, V is the internal body volume, and L_eff is the effective neck length. For a circular soundhole, L_eff includes an end correction of approximately 0.85 × diameter, because the oscillating air column extends slightly beyond the physical hole on both sides. For a typical guitar with an 80 mm diameter soundhole and roughly 13 liters of body volume, this places the Helmholtz resonance somewhere in the 100-125 Hz range. In practice, the guitar body is not rigid, the top plate flexes during vibration, softening the acoustic spring and pulling the resonance slightly lower than the formula predicts.
Above this sits the main top-plate mode, also called the monopole mode. The entire soundboard flexes in and out like a piston, with maximum displacement near the bridge. This mode typically falls 50-100 Hz above the Helmholtz resonance. The two cannot be treated as independent: they couple, producing two peaks in the body's frequency response, one below and one above where they would sit if uncoupled. Measurements on classical guitars place these coupled peaks at roughly 110 Hz and 200 Hz. The combined effect shapes the instrument's fundamental bass response.
Further up sit a set of dipole modes, where the soundboard splits into regions moving in opposite phase. The cross dipole, lower half of the soundboard divided into left and right sections, appears around 300 Hz. The long dipole, dividing the board into upper and lower halves, sits near 400 Hz. A cross tripole, with three opposing zones, appears around 450 Hz. These modes color the midrange character, influencing where the guitar sounds warm, nasal, or open.
Making Mode Shapes Visible
The physicist Ernst Chladni discovered in the 18th century that scattering fine powder on a vibrating plate makes its mode shapes visible. The powder migrates toward nodal lines, the regions that don't move, leaving the vibrating antinodes bare. The resulting patterns reveal the internal geometry of each mode.
On a free spruce top plate before any bracing, the monopole shows almost no nodal lines, the whole plate moves as one surface. The cross dipole produces a single line running roughly parallel to the grain, bisecting the lower bout. Add a lateral brace and that nodal line shifts. Add a diagonal brace and the entire mode shape rotates. Luthiers have been using Chladni patterns, with sand, tea leaves, or modern laser vibrometers, as a quality-control tool for centuries.
Why Bracing Direction Matters
Wood is not an isotropic material. Sitka spruce, the most common tonewood for steel-string soundboards, has a Modulus of Elasticity of about 11 GPa along the grain at a density of only 0.42 g/cm³, an exceptional stiffness-to-weight ratio for a structural material. The cross-grain stiffness is far lower: the longitudinal-to-transverse stiffness ratio is approximately 28:1. This extreme anisotropy means that a brace running with the grain primarily stiffens the plate against along-grain bending. A brace running across the grain adds mostly cross-grain stiffness.
Fan bracing, used on classical guitars, places typically five to nine radiating struts under the lower bout. The pattern emphasizes along-grain stiffness and creates a top that vibrates relatively symmetrically, favoring the monopole mode. Classical builders trace the style to the work of Antonio Torres in the 1850s, who substantially enlarged the guitar body and formalized the fan bracing pattern.
X-bracing, used on virtually all modern steel-string flat-tops, crosses two main struts below the soundhole. C.F. Martin developed this approach in the 1840s. The X-cross is positioned below the soundhole and provides resistance to the torque that steel string tension places on the bridge area, a mechanical load that fan bracing cannot handle without the top warping or cracking. Beyond structural utility, the X pattern shifts the modal behavior: the cross struts add stiffness in directions that fan bracing ignores, moving the dipole modes and altering how the top radiates at midrange frequencies.
Scalloping and Pre-War Tone
From their earliest X-braced guitars until the mid-1940s, Martin shipped instruments with scalloped braces: the middles of each brace were carved away, leaving the endpoints intact. This removes mass without reducing end stiffness. The result is a top that flexes more freely across its full span. The monopole mode becomes louder and slightly lower in frequency. The low-end output increases and the transient response quickens.
Martin discontinued scalloped bracing after World War II, partly due to manufacturing considerations and partly because the lighter construction created warranty issues under heavier steel-string gauges. They reintroduced it in 1976 on the HD-28, and "pre-war scalloping" became a premium specification on their Vintage and Authentic series.
What Tap Tuning Actually Tells You
A luthier building a guitar holds the unbraced plate and taps it. The thump reveals the plate's resonant frequency before any bracing changes it. After gluing braces, each tap reflects the new stiffness configuration. The goal is to guide the main top mode to a target frequency relative to the expected Helmholtz resonance of the completed body.
Removing material from the center of a brace reduces mass more than stiffness, tending to raise the mode frequency slightly. Thinning a brace uniformly reduces stiffness more than mass for a tall brace, lowering the frequencies it controls. Thinning the plate itself affects mass and stiffness together. Experienced luthiers calibrate these relationships by feel, not through calculation, but through thousands of repetitions of tap, listen, remove, repeat.
The coupling ratio between the air resonance and the top plate mode determines the bass character of the finished guitar. When they sit close together, their coupling is strong and the bass output peaks more aggressively. When they are farther apart, the response is more even but the fundamental bass may feel thin. Classical luthiers commonly aim for the main top mode to sit roughly a major second or minor third above the Helmholtz resonance of the completed body.
Implications for Recording and Modeling
Understanding the resonance structure of a guitar body changes how you approach miking it. Positioning a microphone at the soundhole maximizes Helmholtz resonance capture, the boomy, resonant quality you often want to tame with a high-pass filter. Moving the mic toward the 12th fret reduces that coupling and emphasizes the higher plate modes, producing a more balanced and detailed capture.
For physical modeling synthesis, the body resonance chain is typically implemented as a bank of resonant filters or a state-space model applied to the string output. Matching the coupled peak frequencies and damping coefficients of a real instrument determines whether the model sounds like a guitar or a rubber band through a reverb tail. The Helmholtz frequency, the two coupled monopole peaks, and the dipole structure all need to be present and in the right proportion.
The luthier with a chisel and the DSP engineer editing pole-zero pairs are solving the same optimization problem: get the resonator frequencies and coupling ratios right, and the physics does the rest.
